Our Competitive Advantage.

	Option#1 New Line	Option#2 Re-Conductor	Option#3 Bundled-line	Option#4 Add Tower	Option #5 Raise Towers	Option #6 Install SLiM
Cost	Very High	Very High	Very High	High	Moderate to High	Low to Moderate
Probability of higher cost	Medium	High	High	High	High	None
Environmental impact	High	Low	Low	High	Low	None
Visual impact	High	None	Low	High	High	Low
Live-line work	Maybe	No	No	No	Maybe	Yes
Applies to all profiles and configurations	Yes	Maybe	Maybe	Maybe	No	Yes
Failure risk during installation	Low	Low	Low	Medium	High	Low
Reliability of option	High	High	High	Medium	Low	High

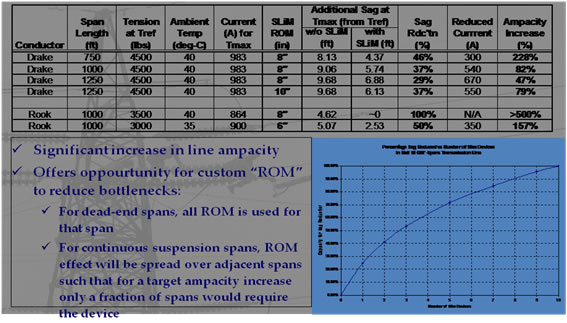

Case Study:

1. Sag, Conductor temp, and current on typical line configurations with and without SLiM with various Range of Motions (ROM)
2. Fixed conditions:


   1. Span with anchor (dead-end) towers at same elevation
   2. Wind speed of 2 ft/sec perpendicular to line & high solar
   3. Reference temp (Tref) of 40degF (4.3degC) for line tension and relative sag calculations
   4. Assumed that the current in line is limited by sag that SLiM can remove from line



Results:
